Aventon Abound LR - Matte Stealth

Canadian Shipment ETA March 20th - Pre Orders Available now through the shop.

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

• Motor: 36V 750w Hub Drive with 6 speed sensors (1188W peak)
• Motor Torque: 80Nm
• Throttle:  Aventon LH Handlebar Mounted
• Display:  Aventon BC147 LCD Smart Easy Read Display with Backlight, Color screen with app
• Battery:  Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells (8.7lbs)
• Sensors: Double Sided Bottom Bracket Torque Sensor
• Pedal Assist:  5 Levels
• Charger:  36V Output: 42V/ 4A 5 Hour Charging
• Range:  Up To 100 Kilometers
• Weight:  88lbs
• Weight Limit: Maximum Payload Capacity: 440 lbs
• Warranty: 2 Year (parts), 1 Year (service)

• Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
• Fork: Aventon Suspension Fork, 51mm travel, w/ lockout,coil spring. 15x110mm thru-axle
• Headset: VP Sealed Bearing Headset
• Saddle: Aventon Saddle w/ grab handle by Selle Royal
• Front Wheel: 20" Double Wall Aluminum, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
• Rear Wheel: 20" Double Wall Aluminum, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
• Tubes: Butyl Rubber, Schrader Valve
• Chain: KMC Z Series, 8 Speed
• Shift Lever: Shimano Acera 8 Speed, Rapidfire
• Cassette: Shimano Acera 12-32T / 8 Speed CS HG200-8
• Rear Deraileur: Shimano Altus RD-M310 8 Speed
• Crankset: 170mm w/ 52 T 104 BCD
• Brakes:  Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire, 180mm Front Rotor, 203mm Rear Rotor
• Tires: 20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
• Handlebar: BMX Style Aluminum 31.8mm, 720mm
• Stem: Adjustable 31.8mm Quill Stem
• Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor
• Pedals: 9/16" Composite Platform
• Seat Post Clamp: Quick Release 34.9mm

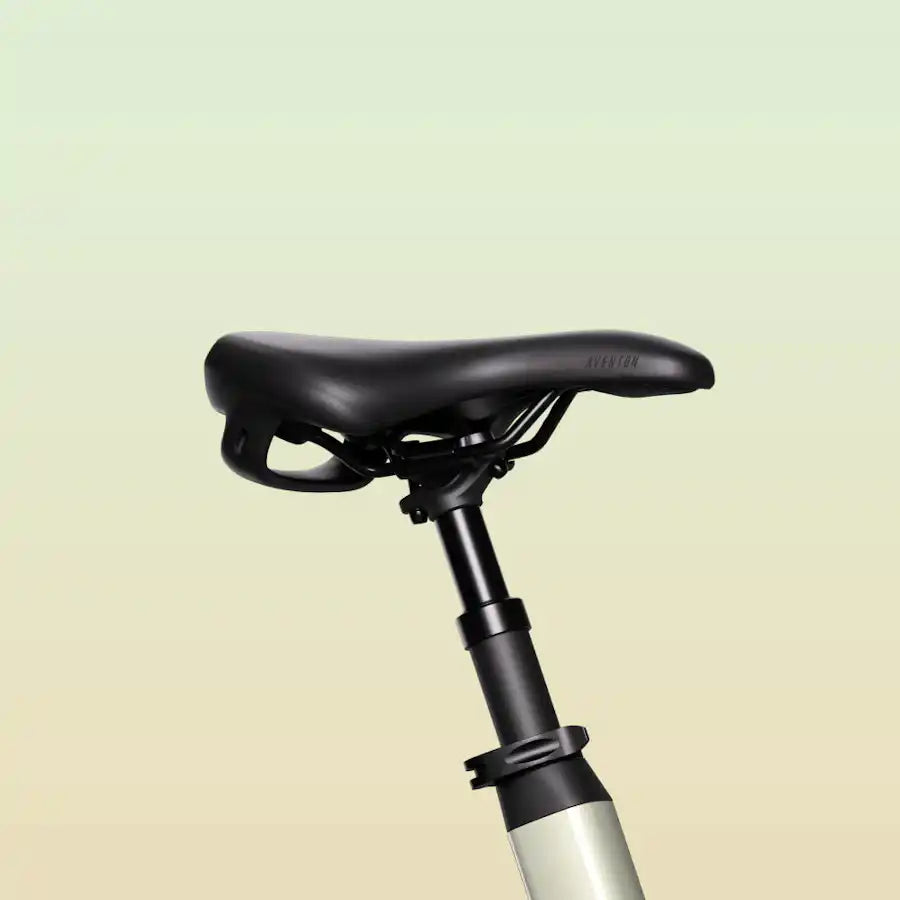

• Seatpost: Aventon Suspension Seatpost 350mm with 50mm travel (30.9mm)
• Included Accessories: Fenders, Rack (143lb Capacity), Suspension Seatpost, Adjustable Stem, Built in locking storage bag, Rear Foot treys, Locking kickstand
• Available Accessories: Front Trey Rack, Front Basket,

Frame Size: 4'11" to 6'3"

Bikes come fully assembled and are tested by the shop. Shipped bikes are tuned and tested in store then partially disassembled for shipping.
